This is a small puzzle game about creating logic gates using only NAND Gates. I only started on Monday (because I barely had time on the weekend), so it's definetly not as polished and content rich as I hoped it would be.

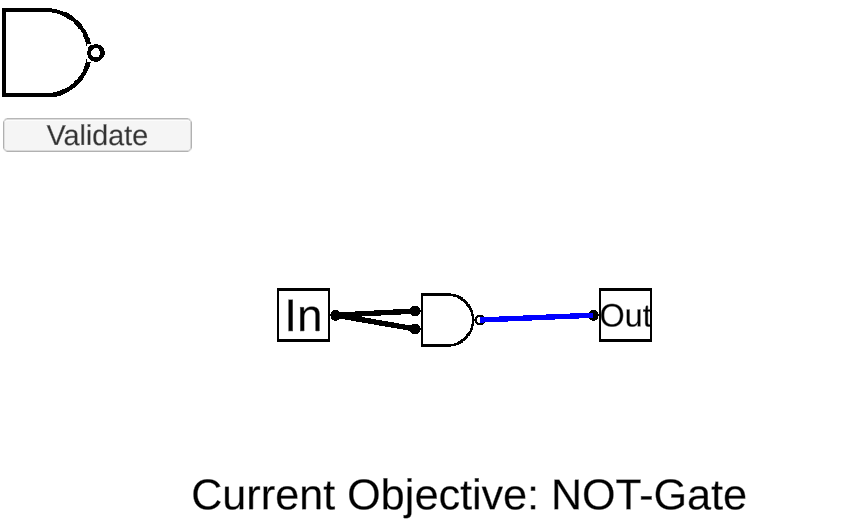

Drag the Logic Gates from the top to create new ones, you can connect them via left-dragging on the nodes. Your goal is to create the Logic Gate described by the objective using only the ones you have and the Input-Output Nodes. Press validate to see if you were right. You can right-drag a node to delete the connection. (You cannot delete logic gates, I sort of forgot that :) )
It's recommended you look up a truth table to actually know what the logic gates are supposed to do. (Sorry, I didn't provide a tutorial)
